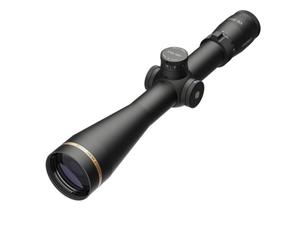

Leupold VX-5HD 4-20x52mm CDS-TZL3 MOA Reticle

Price: $1,699.99
SKU: LEU171700
MPN: 171700
UPC: 030317012793
In stock
as of 10/24/2021 10:43PM CST


Store Inventory
Available OnlineMore than 5
Fountain Valley, CA3
The Colony, TX3


Inter-Store Transfer

If this item is out of stock at your local RifleGear but available at our other location, no problem. Just place your order and select In-Store Pickup as the shipping method. As long as the item is legal in your location, we will transfer the item for you. You will be notified by e-mail when your item arrives.

The VX-5HD 4-20x52mm offers magnification for both close and long ranges. The CDS-TZL3 elevation adjustment allows for target adjustments with a push-button lockring and easy to read revolution indicator.

The VX-5HD allows for a wide range of magnification for hunters and shooters with an ability to adapt to any environment. Using Leupold's Professional Grade Optical System, the VX-5HF offers unmatched light transmission in the most challenging lighting conditions. Glare reduction provides a clear image in harsh and direct light while retaining resolution and clarity in the field.

Specifications
Magnification 4-20x
Maintube Diameter(mm) 34
Reticle TMOA
Illuminated No
Finish Matte
Adjustable Objective No
Elevation Adjustment Type CDS-TZL3
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial Compatible Yes
BDC Dial Included No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Weight (oz) 23.5
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 60MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Objective Lens Diameter (mm) 52
Linear FOV Low Mag ([email protected]) 28.1
Linear FOV High Mag ([email protected]) 5.8
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) 1.1
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
