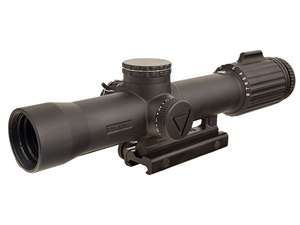

The VCOG(Variable Combat Optical Gunsight) is a rugged, variable magnification riflescope designed for close quarters battle and long distance marksmanship applications. Nearly indestructible, the VCOG is made from forged 7075-T6 aluminum. Its superior glass offers exceptional clarity and color with zero distortion. A universal segmented circle/MRAD reticle is designed for multi-platform use, including multiple calibers, bullet weights and barrel lengths.
A first focal plane reticle enables subtensions and drops to remain true at any magnification for quick and accurate holds. Powered by a lithium AA battery and LED reticle, the VCOG is robust for any application.
This model utilizes a FFP(First Focal Plane) with Red MRAD Crosshair Dot Reticle.
Specifications | |
---|---|
Magnification | 1-8x |
Objective Size | 28mm |
Reticle Pattern | Segmented Circle / Crosshair |
Day Reticle Color | Red |
Night Reticle Color | Red |
Focal Plane | First |
Bullet Drop Compensating (BDC) | No |
Bindon Aiming Concept™ (BAC) | Yes |
Caliber | MRAD |
Illumination Source | LED |
Illumination Settings | 11 Total Settings: 2 Night Vision, 8 Day, and 1 Super-Bright Setting |
Power Source | AA Lithium or Alkaline Battery |
Battery Life | 633 hours (26.4 days) at setting 6 |
Adjustment | .1 MRAD |
Adjustment Range | 35 MRAD |
Eye Relief | 4 in. - 3.9 in. (101.6mm - 99.06mm) |
Exit Pupil | 0.40 in. - 0.14 in. (10.16mm - 3.56mm) |
Field of View (degrees) | 20° - 2.5° |
Field of View (feet) | 109.2 ft. - 13.1 ft. @ 100 yds. (36.4 - 4.37m @ 100m) |
Mount | Flattop Thumbscrew Mount (TA51) |
Housing Material | 7075-T6 forged aluminum |
Finish | Matte Black |
Submersion Depth | 66 ft. (20m) |
Length x Width x Height | 10.8 in x 2.8 in x 2.8 in |
Weight | 31.5 oz. (893.01g) |
