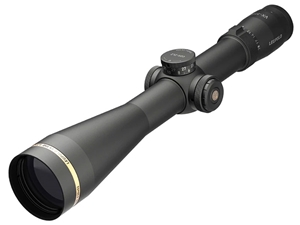

Leupold VX-5HD 4-20x52 CDS-ZL2 Illuminated FireDot Duplex

Price: $1,799.99
SKU: LEU178166
MPN: LEU178166
UPC: 030317024024
Out of stock
as of 10/06/2022 9:24PM CST


Store Inventory
Available OnlineOut of stock
Fountain Valley, CAOut of stock
The Colony, TXOut of stock
Enter your email address below to receive an email when the product is back in stock:


Inter-Store Transfer

If this item is out of stock at your local RifleGear but available at our other location, no problem. Just place your order and select In-Store Pickup as the shipping method. As long as the item is legal in your location, we will transfer the item for you.

The VX-5HD 4-20x52mm offers magnification for both close and long ranges. The CDS-ZL2 allows for precise adjustments with teh security of a push button lock and two revolutions of adjustment.

The VX-5HD allows for a wide range of magnification for hunters and shooters with an ability to adapt to any environment. Using Leupold's Professional Grade Optical System, the VX-5HF offers unmatched light transmission in the most challenging lighting conditions. Glare reduction provides a clear image in harsh and direct light while retaining resolution and clarity in the field.

SPECIFICATIONS
Adjustable Objective No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
BDC Dial Included No
Reticle Type Illuminated
Reticle Illum. FireDot Duplex
Light Management System Professional-Grade Optical System
Magnification Type Variable
Battery Type CR2032
Switch Type Push Button
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 23.5
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Magnification Max 20
Magnification Min 4
Objective Lens Diameter (mm) 52
Linear FOV Low Mag ([email protected]) 28.4
Linear FOV High Mag ([email protected]) 7.7
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
