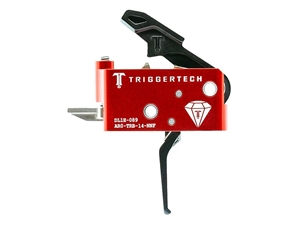

TriggerTech AR15 Diamond Two Stage Trigger, Flat
$289.99
$279.99
Out of stock
as of 04/26/2024 3:57PM CST
Store Inventory
Available OnlineOut of stock
Fountain Valley, CAOut of stock
The Colony, TXOut of stock
SKU: TRT-AR0-TRB-14-NNF
MPN:
AR0-TRB-14-NNF
UPC:
885768000864
- DESCRIPTION
- REVIEWS
Inter-Store Transfer
If this item is out of stock at your local RifleGear but available at our other location, no problem. Just place your order and select In-Store Pickup as the shipping method. As long as the item is legal in your location, we will transfer the item for you. You will be notified by email once your item has arrived at the destination.
The TriggerTech Drop-In AR15 trigger features Frictionless Release Technology for consistent trigger pulls. Designed to feel like a 1911 trigger, features include a short, 2-stage pull, zero creep, short overtravel and sub 0.030" tactical reset. CLKR Technology allows for pull weight adjustments in 2 oz increments with a set screw. Changing its pull weight does not affect hammer force so you get dependable primer strikes at every weight. Hardened 440C stainless steel internal components ensure corrosion resistance and extended service life.
Intended Use
3 Gun, close quarter engagement, competition, harsh environments operations, high speed shooting, home defense, law enforcement, long range hunting, military, precision shooting, rugged hunting, target shooting, varmint hunting.
| AR15 Diamond Model | |
|---|---|
| 1st Stage | 0.25 lbs |
| 2nd Stage | 1.25 - 3.75 lbs |
| Total Pull Weight | 1.5 - 4 lbs |
| Specifications | |
|---|---|
| Trigger Lever Type | Straight |
| Trigger Action | Short Two Stage Action, designed to feel like a 1911 |
| FRT | Yes |
| TKR Technology | Yes |
| CLKR Technology | Yes |
| FLTWR Technology | Yes |
| Creep | 0.000" |
| Overtravel | < 0.015" |
| Reset | < 0.030" |
| Reset Feel | Tactile mid force |
| Hammer Strike Force | Full |
| Pin Size | Standard Mil-Spec Pin 0.154" (trigger pins not included) |
| Weapon Platform | AR 15 (and pump action AR) |
| Housing | 7075 Aluminum (anodized) |
| Key Components | 440C Stainless Steel |
*All pull weights and measurements are approximate.
The installation guide is directed to experienced professional gunsmiths who understand the workings of their AR rifle and know how to fully detail strip the lower receiver. If you do not have these skills, we strongly suggest you retain the services of a competent professional gunsmith to install your trigger, and perform all important safety checks.
